The beginning of my solar quest began several months prior to implementing the project. I soon realized I needed to do a lot of research to learn how to do my own solar project. There were many questions that seemed to not get answered during my search. Folks who posted photos of their installation was most helpful.
Jack Mayers site http://www.jackdanmayer.com/ was most helpful of all the sites I visited. I did contact Jack via email a few times with questions and he was very helpful. I followed Jack's solar installation recommendations as close I could.
My system does vary from his system and others somewhat. I did this because of cost, space and component availability.
Another good site worth reading is HandyBob's Blog http://handybobsolar.wordpress.com/
Bob's site is packed with helpful information to guide you in the right direction.

DC Cable Connections

Our Montana 3150RL has a Generator Prep option. This is a mixed blessing. It does have a 50 Amp Auto Switch which is handy if I wanted to add a generator. It also is handy because I chose to use flooded lead acid 6 Volt golf cart batteries. The batteries can be kept in a separate bay from the Solar Controller and the Inverter/Charger.

The smaller bays creates tight spaces to wire and locate the different components. A single bay is much larger and easier to work in but it is recommended using AGM sealed batteries with a single bay. The disadvantage is the cost of the batteries.

U2200 Interstate Batteries

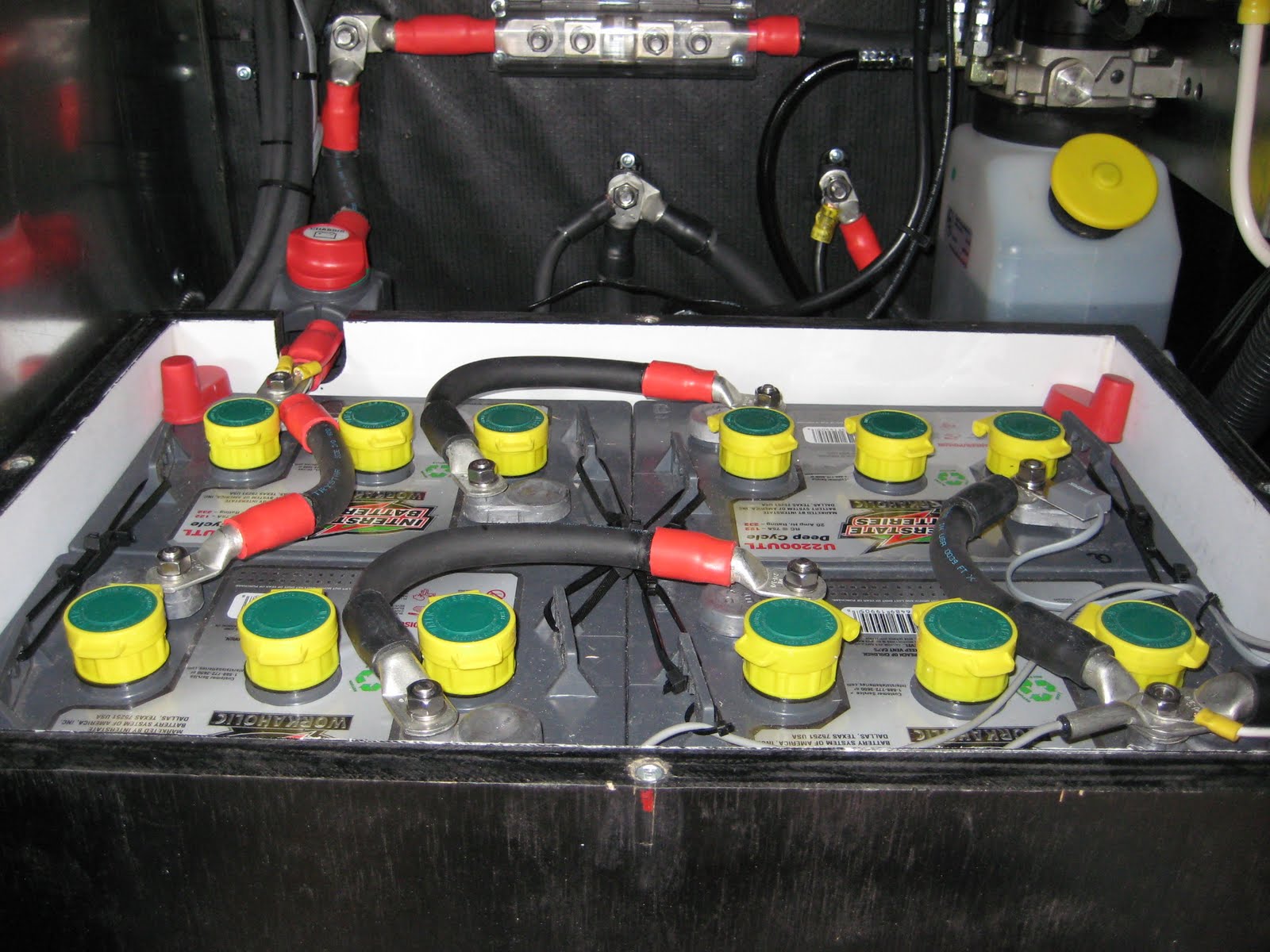

These four Interstate U2200UTL 6 volt golf cart batteries are wired in series/parallel. I used #2/0 welding cable to interconnect the batteries. Coming from the Positive and Negative post is #4/0 welding cable. The #4/0 might be overkill but it does allow for expanding the system and helps keep voltage drop to a minimum. I made my own cables using lugs and a lug crimper. It made the job of running cables a lot easier. I don't think I could have run premade cables. The cost for the cables are reduced a lot also.

See those yellow battery caps. They are special. They are Water Miser Battery Caps and allow for checking, filling and equalizing the batteries with the caps in place. The caps are flip top.

I had to create a battery box out of plywood because I could not find a battery box or plastic tub that would allow for 4 batteries to fit in the space available. The box had to be in two sections plus the top to be able to fit through the bay door. The front bottom of the box is bevel cut so it can be slid to the front of the bay and clear the hydraulic fluid tank.
The box is lined with Plas-Tex wall paneling. It is a plastic covering glued to the walls and bottom. I used The Battery Mat, a mat placed under the batteries which neutralizes any acid that might escape to the bottom of the box.
The 12 volt Interstate Marine/RV battery that came with the unit weighed 32Lbs. The Interstate 6 volt true deep cycle golf cart batteries weigh 60.5Lbs each.
The Coach Positive cable with the yellow crimp connector is attached to the power post with the red end cable to the left of the hydraulic tank for the slides.

Multi Section Battery Box

Battery Box inplace with vent tube connected. I used a lavatory sink down tube for the riser for the vent tube to connect to.











Hammer Lug Crimp Tool
Hammer Crimp Lug crimper, lugs and cable. Use anti oxidant compound in the lugs and cable end before crimping.










Shrink Tubing
Triple wall shrink tubing color coded black for negative and red for positive connections.











Tree Pruner
A tree pruner from Wal Mart came in handy to cut the monster welding cable. The wire cutter from Ace just did not have the capability to cut the large cable.

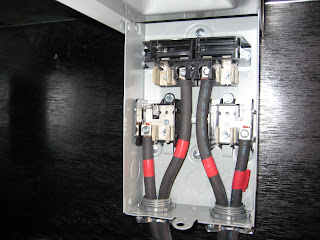

60 Amp Air Conditioner pull fuse box.
This is a very handy box to use for the solar panels positive cable from the roof to come into one side and then out to the solar charger. Then from the solar charger back to the AC fuse box on the other side and out to the DC power post leading to the batteries. The solar panels on the roof can be disconnected simply by pulling the disconnect.

2000 Watt Xantrex Inverter/Charger

This is the Xantrex Freedom SW2000 Inverter/Charger. It has a 30 Amp pass through switch and a built in 100 Amp charger. When plugged into shore power the AC passes through and powers the main power panel and the sub panel and charges the batteries all at the same time. The inverter/charger can be shut off with the remote switch and you can then charge with the solar panels and the charge controller or leave the remote switch on and charge with both. When not connected to shore power the inverter will power the sub panels four circuits with AC power.

When plugged into shore power and the 30 Amp breaker for the inverter is in the off position the inverter will power the four circuits in the sub panel from the batteries and the shore power will power the rest of the main panel circuits. This saves you $$ if you are metered.

My converter is unplugged and the breaker shut off. It could still be used if I plugged it in with an external cord. But not at the same time as using the inverter charger. The converter is really a battery charger. The charging from the inverter charger makes the converter unnecessary except in a case where the charging from the inverter/charger breaks down. Whew! Got to read all this again.

Those two double gang junction boxes on the back wall of the bay above the Inverter/charger are for connecting the #10 gauge wire for the AC power to and from the inverter. 1 box is for the in coming from the main panel and the other one is for the out going AC power to the sub panel. The boxes made it much easier to connect the inverter to the #10 ga wire.

At the time I ordered the price was $1199.00 at Boat & RV Accessories. Since then the price has probably gone up. Boat & RV Accessories is a great place to check out Inverter/Chargers.
http://www.boatandrvaccessories.com/INVERTERS-CHARGERS.htm

Morningstar TriStar Charge Controller

The Morningstar TriStar TS-45 Solar Charge Controller. This is a PWM Charge Controller. After reading Handy Bob's Blog and Tioga George's Blog I settled on the TriStar. I felt I did not need a MPPT charge controller. The cost was probably less than half the cost of the more advanced MPPT controllers. I did spring for the extra $70 monitor panel for the front of the controller even though it was probably not necessary. The temp probe was also an addition. Along side the charge controller is the Air Conditioner Pull Fuse Disconnect Box.
http://store.solar-electric.com/trts12vochco.html

Sub Panel

The sub panel is a 40 Amp main lug sub panel and has four circuits. The circuits were moved from the main panel to the sub panel. Shore power passes through the inverter/charger to provide AC current. This is done automatically when connected to shore power. If not connected to shore power the sub panel receives AC power from the inverter to supply the AC current to the four circuits.

Trimetric 2020 Battery Monitor & Inverter On/Off

The Trimetric 2020 battery monitor and the Xantrex Inverter/Charger On/Off switch I mounted above the existing controls over the steps leading to the bedroom. The Trimetric battery monitor gives about any battery reading you would need and is not all that hard to understand once you hook it up and read the instructions that comes with it. The inverter on/off switch is simple and does what I need it to do without getting into another monitor panel to setup. On/Off I like that.
Oh when you cut those holes in the wall, beware there is a wire bundle back behind there the size of your leg. An Exato knife saw is very handy to cut those holes and make a paper template with a tape stiffener on the back to mark your cut location. If you come up through the entry closet to penetrate the roof for the solar panel cables, beware there are several cables above the closet ceiling. Drill or cut very slowly and shallow.
A 500Amp Shunt is needed for the Battery Monitor to be able to take the necessary readings.
http://store.solar-electric.com/tm2020.html

500 Amp Shunt
500 Amp Shunt on Negative side of batteries. The Coaches Negative (white cable) ground is attached on the downstream side of the shunt.

Combiner Box

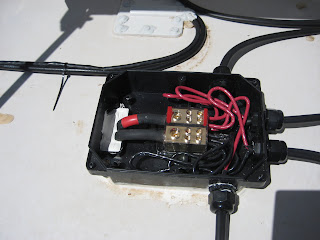

This baby is only three months old and I'm already putting holes in the roof. But the holes are sealed with Dicor 501 roof sealant. I used an AM Solar combiner box that I modified. The AM Solar box came with buss bars that would not hold my #4 welding cable leading to the charge controller. I didn't want to clip a few strands to fit the buss bar holes. So I had a distribution hub I picked up in Quartzsite that would take the larger #4 cable. So it was modify time. If I had known the buss bars were for smaller wire I would have bought an outside weather proof box at Home Depot and epoxied the distribution hub I had to the inside of it. Could have saved a lot of money. This distribution hub I used is commonly used in high power stereo installations. The AM Solar combiner box is low profile which will allow placing under a solar panel which is helpful if your panel falls over the combiner box.

System Schematic

The drawing above is a schematic of my solar system. It was important to understand how each component in the system is connected. I had to refer back to a simple hand drawing like this several times which aided my thought process when laying out the system. I spent a lot of time making up cables and running wire. The sub panel required moving some wires from the main panel to a sub panel to power the wall plugs in the four circuits I wanted power to in the coach.

When making up cables I discovered it is best to measure or take the cable to where it fits and hold it in place to get the length. The lug ends sometimes need to be oposite each other to be able to fit right. Power Post are very necessary when making all the connections required. I actually ordered six and used four of them. I ordered more cable lugs than I thought I would need which was good because I wasted about six of them. That #4/0 welding cable is a bear to bend in short runs, # 2/0 is not all that bad.

I printed out Jack Mayer's solar information so I could refer back to it as needed. There are many questions that comes up during implementation of the system and his material has most of the answers but with room for one to make a decision for what is best for their circumstance.

Most of my system came from Northern Arizona Wind and Sun. Solar Panels, Charge Controller, Cable and Accessories, Fuses. Solar Products
Inverter/Charger came from Boat and RV Accessories. Inverter/Charger
Shrink tubing, power posts I ordered from Del City. Misc. Items
Solar Panel Mounts were ordered from Starlight Solar. Panel Mounts

Solar Panel Mounts

There are several different types of panel mounts. I chose the mounts from Starlight Solar in Yuma, AZ. Pictured above is a set of mounts for one panel. They came with lag screws and tilt bars. The L brackets had to be drilled with new holes to fit the Kyrocera panels I used.

Combiner Box Wired

Panel J-Box Wired

Solar Panels Up And Charging
And No Smoke!
